OWP-BL43-440C Electric Coolant Pump: Reliable Cooling Solution for Uninterruptible Power Supplies
In data centers where uninterruptible power supplies (UPS) are critical to preventing costly downtime, the OWP-BL43-440C Electric Coolant Pump delivers exceptional performance, durability, and precision cooling. Engineered with advanced BLDC motor technology and magnetic force transmission, this single-stage centrifugal pump is designed to meet the rigorous demands of UPS systems, ensuring stable operation even in extreme environments.
Key Features & Competitive Advantages
- Intelligent Flow & Speed Control: Equipped with constant flow regulation and PWM speed adjustment, the pump adapts dynamically to cooling demands, optimizing energy efficiency while maintaining consistent performance.
- Comprehensive Protection Mechanisms: Features reverse polarity protection, dry running protection, and multi-layer safeguards against overvoltage, overcurrent, overload, and overtemperature—minimizing equipment damage and extending service life.
- High-Efficiency Design: Professional electromagnetic theory verification enhances motor efficiency by 3-5% compared to industry peers. Hydraulic components (impeller and volute) undergo precision simulation calculations via specialized software, achieving superior hydraulic efficiency.
- Durable Construction: Magnetic force transmission (shield pump structure) and nylon plastic-encapsulated driving electromagnets ensure leak-proof operation and resistance to corrosion, while an IP68 rating guarantees dust and water protection.
- Extended Service Life: Boasts a lifespan exceeding 20,000 hours, reducing maintenance frequency and total cost of ownership for data center operators.
Technical Specifications
| Parameter |
Details |
| Power Input |
24VDC (18-32VDC) |
| Rated Power |
400W |
| Rated Flow Rate |
3000L/H @ H=20M |
| Maximum Flow Rate |
4600L/H |
| Maximum Lift Head |
23M |
| Outlet Connection |
Clamp Quick-Connect Fitting |
| Working Temperature Range (Medium) |
-40℃ to +85℃ (-40°F to +185°F) |
| Working Ambient Temperature |
-40℃ to +120℃ (-40°F to +248°F), Humidity ≤90% |
| System Pressure |
-0.5-2.5 Bar (at 100℃/212°F) |
| Noise Level |
≤60dB |
| Speed Regulation |
PWM |
| IP Rating |
IP68 |
| Service Life |
＞20000 hours |
Application: Data Center UPS Cooling
Uninterruptible Power Supplies (UPS) are the backbone of data center reliability, providing instant backup power during outages to protect critical servers, storage systems, and networking equipment. However, UPS systems generate significant heat during operation—especially under high load—which can degrade components and compromise performance over time. The OWP-BL43-440C Electric Coolant Pump addresses this challenge by delivering efficient, consistent cooling to UPS batteries, inverters, and rectifiers.
With a wide operating temperature range (-40℃ to +85℃ for the cooling medium) and robust IP68 protection, the pump performs reliably in harsh data center environments, including high-humidity and extreme-temperature conditions. Its high flow rate (up to 4600L/H) and maximum lift head (23M) ensure rapid heat dissipation, preventing overheating and maintaining UPS efficiency. The pump’s PWM speed regulation allows for energy-saving operation, aligning with data centers’ sustainability goals, while its comprehensive protection features minimize the risk of pump failure—critical for avoiding UPS downtime.
Whether deployed in large-scale data centers, colocation facilities, or enterprise server rooms, the OWP-BL43-440C Electric Coolant Pump is the trusted choice for UPS cooling, combining technical excellence, durability, and cost-effectiveness.

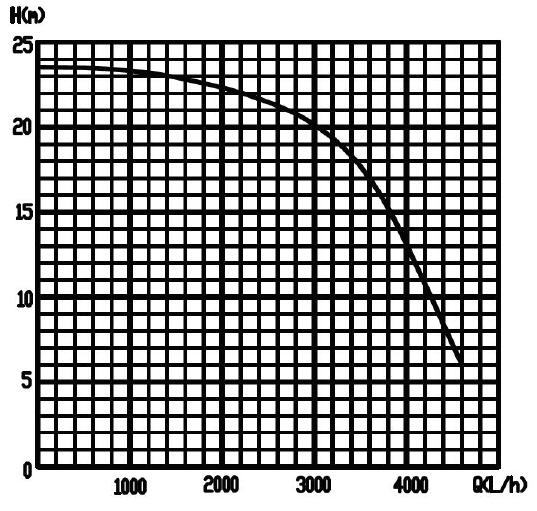

Performance Curve
Diemsional Drawing
